BLE Technology in Employee & Personnel Tracking Systems

    BLE beacons are compact, versatile, and energy-efficient Bluetooth transmitters detectable by wireless devices such as BLE-enabled smartphones. These beacons can be strategically positioned in fixed locations, like mounted on walls or structures, or attached to mobile assets, offering reference points for indoor positioning applications. This facilitates the implementation of bring-your-own-device (BYOD) concepts, allowing individuals to interact with BLE-enabled applications using their smartphones or other embedded devices. By leveraging BLE beacons, one can ascertain a device's location and deliver pertinent content, including documents, videos, apps, and more, or provide guidance regarding the user's time or location, ensuring users stay informed and engaged.

Beacons transmit signals at regular intervals, which can be detected by other BLE-enabled devices. A BLE device collects location data from the beacons and forwards it to the Indoor Positioning System (IPS) to determine the device's precise location. This capability supports various location-aware applications and can trigger specific actions based on the gathered data.

BLE indoor positioning solutions employ either BLE-enabled sensors or beacons to identify and locate transmitting Bluetooth devices, such as smartphones or tracking tags, within indoor spaces. The location data collected by sensors or sent from beacons to mobile devices is then processed by various locationing applications, translating it into insights that drive multiple location-aware use cases.

While there are numerous and diverse use cases for BLE, this article focuses on a significant one:

Transforming Workplace Efficiency: A BLE Use Case in Employee & Personnel Tracking

In today's dynamic workplaces, technological innovations are pivotal in reshaping how organizations manage their resources. Bluetooth Low Energy (BLE) has emerged as a transformative force, and in this article, we explore a compelling use case: the development of an Employee & Personnel Tracking System, shedding light on the technical architecture behind this groundbreaking solution.

Unveiling BLE Technology

BLE distinguishes itself with energy efficiency and seamless compatibility across devices. Organizations leverage BLE to craft sophisticated tracking systems that provide real-time insights into employee movements and interactions within a workspace.

Technical Architecture of BLE Employee Tracking System

1. BLE Beacons: These strategically placed devices emit low-energy signals detected by smartphones or wearables, enabling precise location tracking.
2. Gateway Devices: Acting as intermediaries, these devices collect data from beacons and transmit it securely to the central server for processing.
3. Central Server: The nerve centre of the system, responsible for data processing, user authentication, and communication with the user interface.
4. User Interface: Accessible through web applications or mobile devices, offering real-time updates and interactive features for a seamless user experience.
5. Data Encryption and Security: Robust encryption protocols ensure the confidentiality and integrity of tracking data, preventing unauthorized access.
6. Analytics Engine: Processes data to generate insightful reports, identifying patterns and trends in employee movements for decision-making.

Real-World Benefits of the Technical Architecture

1. Scalability: The modular design allows for easy expansion without disrupting existing operations.
2. Redundancy Measures: Built-in measures, such as backup power, ensure continuous operation in case of outages or failures.
3. Integration Capabilities: Designed to seamlessly integrate with existing organizational systems, enhancing overall efficiency.

Conclusion

The technical architecture of a BLE-based Employee & Personnel Tracking System is a meticulous synergy of BLE technology, data processing components, and security measures. This sophisticated system not only provides real-time insights into employee activities but also showcases the adaptability and scalability crucial for modern workplace solutions. As organizations embrace the digital era, the fusion of BLE technology and robust technical architecture stands as a testament to the power of innovation in reshaping the future of workforce management.

Understanding BLE Range

Introduction:

Bluetooth Low Energy (BLE) has become an integral part of our connected world, enabling seamless communication between devices with minimal energy consumption. One of the critical factors that determine the effectiveness of BLE in various applications is its range. In this article, we will delve into the intricacies of BLE range, exploring how it works, factors affecting it, and strategies to maximize it.

Understanding BLE Range:

BLE is designed for short-range communication, typically within a range of 10 to 100 meters. This limitation is intentional, as BLE is optimized for low power consumption, making it ideal for battery-powered devices such as fitness trackers, smart-watches, and other IoT devices. However, achieving the maximum range can be influenced by several factors.



Factors Affecting BLE Range:

1. Transmit Power Levels: BLE devices have adjustable transmit power levels. Higher transmit power can extend the range, but it comes at the cost of increased energy consumption. Balancing power consumption with the desired range is crucial in optimizing BLE performance.

2. Environmental Interference: Physical obstacles, such as walls, furniture, and other electronic devices, can obstruct the BLE signal. Radio frequency interference from Wi-Fi networks and other wireless technologies can also impact range. Understanding the environment in which BLE devices operate is essential for predicting and optimizing range.

3. Antenna Design: The design and placement of the antenna play a significant role in BLE range. A well-designed antenna can enhance signal strength and improve overall performance. Developers should consider antenna placement during the design phase to maximize range.

4. Receiver Sensitivity: The sensitivity of the receiver in a BLE device influences its ability to detect signals at low power levels. Devices with higher receiver sensitivity can communicate over longer distances, but this may come at the expense of increased power consumption.



Strategies to Maximize BLE Range:

1. Optimize Transmit Power: Adjust the transmit power based on the specific requirements of the application. For scenarios where a shorter range is acceptable, lower transmit power levels can be used to conserve energy.

2. Choose the Right Antenna: Selecting an appropriate antenna design and placement is crucial for optimizing range. Directional antennas can focus the signal in a specific direction, potentially extending the range in that direction.

3. Mitigate Interference: Identify and minimize sources of interference in the environment. This may involve selecting channels with less interference, adjusting the operating frequency, or using techniques to mitigate the impact of interference.

4. Use Repeater Devices: In scenarios where an extended range is required, deploying repeater devices can be a practical solution. These devices can receive and re-transmit BLE signals, effectively extending the communication range.

Conclusion:

Bluetooth Low Energy is a versatile technology that has transformed the way devices communicate wirelessly. Understanding and optimizing BLE range is crucial for ensuring reliable and efficient communication in various applications. By carefully considering factors such as transmit power, environmental interference, antenna design, and receiver sensitivity, developers can tailor BLE implementations to meet the specific requirements of their applications while balancing power consumption and communication range. As technology continues to advance, we can expect further innovations in BLE range optimization, unlocking new possibilities for connected devices in the Internet of Things era.



Navigating BLE Power Consumption and Range Dynamics for Optimal Connectivity



    Bluetooth Low Energy (BLE) has revolutionized the way devices connect, offering an efficient solution across various applications. This article delves into two critical facets of BLE technology: power consumption and range. A comprehensive understanding of these aspects is pivotal for optimizing performance in diverse applications.

BLE Power Consumption:

Efficiency at its Core:

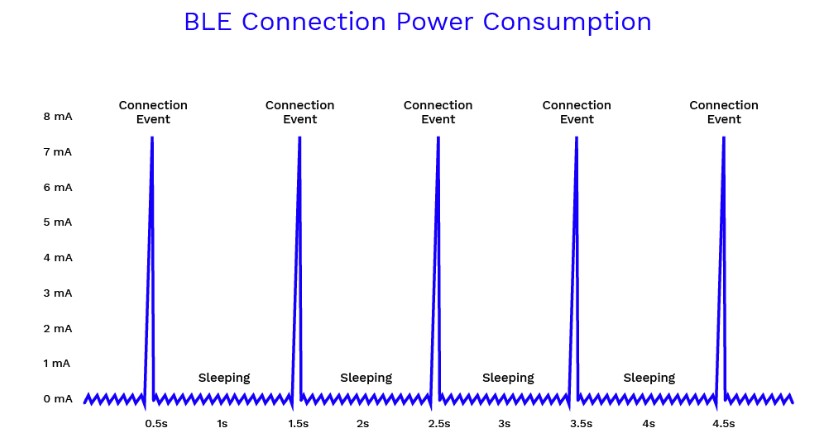

    BLE modules are inherently designed for low power, yet the current draw can fluctuate based on device specifications, chip selection, and software implementation.

Ø  In the idle state, a BLE device operates in low power or sleep mode, with minimal current draw often ranging from 1 µA to 10 µA, depending on the specific chip and power-saving features.

Ø  During advertising, when the device actively broadcasts packets to signal its presence, power consumption increases in short bursts. Current draw during these bursts may range from 3 mA to 10 mA, contingent on device specifics and advertising settings.

Ø  During connection, where the device communicates with another BLE device, power usage varies based on Bluetooth connection settings. This can range from approximately 5 mA to 30 mA during active communication, factoring in variables like connection interval and event length. It's important to note that this is often averaged over time as devices are not constantly transmitting or receiving data.

Factors influencing power consumption in BLE products encompass the Advertising State and the Connection State.

Advertising State:

·         Transmit Power: Influences peak and average power consumption.

·         Advertising Interval: Should be defined to maximize battery life.

·         Advertising Event Types: Varied types with specific use cases.

Connection State:

·         Power consumption is influenced by connection interval, event length, data size, receive power, and transmit power. BLE v4.2's increased payload size from 27 bytes to 251 bytes contributes to reduced power consumption.

Other Factors:

Power optimization options during scanning and initiation states.

Power optimization during standby state.

System resources like the CPU and peripherals affecting power consumption.

There are three main ways to Minimize Power Consumption in BLE:

Ø  Choose the right hardware components, including the battery.

Ø  Optimize firmware through static and dynamic parameters.

Ø  Optimize firmware source code for efficiency, compiler optimizations, and protocol efficiency.

BLE Range:

Beyond the Immediate Proximity:

BLE's range typically spans around 100 meters, subject to factors such as transmission power, obstacles, interference, and connection interval.

Conclusion:

Bluetooth Low Energy strikes an optimal balance between power efficiency and range, influencing the future of wireless communication. Whether it's an enduring fitness tracker or a seamlessly connected smart home, comprehending the dynamics between power consumption and range is imperative for unlocking BLE's full potential in diverse applications.

Exploring the Power of Bluetooth Low Energy for Connectivity and Precision



The Bluetooth Low Energy (LE) radio is specifically designed for ultra-low power operation, offering a versatile platform for developers. Operating across 40 channels within the 2.4GHz unlicensed ISM frequency band, Bluetooth LE empowers developers to tailor their products to meet the unique connectivity demands of their target markets.

It supports a wide range of communication topologies, spanning from point-to-point and broadcast to the latest addition of mesh networking, enabling Bluetooth to underpin the creation of robust, large-scale device networks. Initially renowned for its device-to-device communication capabilities, Bluetooth LE has now become a prominent player in the world of device positioning technology, catering to the growing demand for high-precision indoor location services. It boasts features that allow one device to determine the presence, distance, and direction of another.

Bluetooth operates within the 2.4GHz ISM band, specifically between 2.402 and 2.480 GHz, with a slight extension from 2.400 to 2.4835 GHz, inclusive of 2 MHz guard bands at the lower end and 3.5 MHz guard bands at the upper end. This frequency range falls within the globally unlicensed but regulated industrial, scientific, and medical (ISM) 2.4 GHz short-range radio frequency band. Bluetooth's radio technology employs a technique known as frequency-hopping spread spectrum, wherein transmitted data is segmented into packets and each packet is transmitted using a hopping mechanism.

Here's a breakdown of Bluetooth Low Energy's key specifications:

·         Frequency Band: Bluetooth LE operates within the 2.4GHz ISM Band (2.402 – 2.480 GHz Utilized).

·    Channels: It utilizes 40 channels, with 2 MHz spacing, including 3 advertising channels and 37 data channels.

·         Channel Usage: Bluetooth LE employs Frequency-Hopping Spread Spectrum (FHSS).

·         Modulation: The modulation technique used is GFSK.

·         Data Rate: Bluetooth LE offers different data rates, including LE 2M PHY (2 Mb/s), LE 1M PHY (1 Mb/s), LE Coded PHY (S=2, 500 Kb/s), and LE Coded PHY (S=8, 125 Kb/s).

·         Transmission Power: The maximum transmission power is 100 mW (+20 dBm).

·         Receiver Sensitivity: Receiver sensitivity varies depending on the PHY, ranging from ≤-70 dBm to ≤-82 dBm.

·         Communication Topologies: Bluetooth LE supports various communication topologies, including point-to-point, broadcast, and mesh networking.

The 40 RF channels in Bluetooth LE are categorized into three advertising channels (channel indices: 37, 38, 39) and thirty-seven data channels (channel indices: 0 to 36). The separation of advertising channels across the 2.4 GHz spectrum is intentional to prevent interference from other devices operating in the same spectrum, such as WLAN. Advertising channels are primarily used for transmitting advertising packets, scan request/response packets, and connection indication packets, while data channels serve as the main conduit for data exchange.

There are two types of link layer channels in Bluetooth LE:

·         Advertising Channel Usage: These channels are utilized for device discovery, connection establishment, and broadcast transmissions.

·         Data Channel Usage: Data channels facilitate bidirectional communication between connected devices, with adaptive frequency hopping employed for subsequent connection events.

In essence, Bluetooth LE operates within the license-free 2.4 GHz ISM band, employing 40 communication channels, including 3 advertising channels and 37 connection channels. These channels are strategically used in different BLE communication modes, offering both connection-less and connection-oriented capabilities. The connection-less mode leverages the three advertising channels to broadcast advertising packets, which are instrumental in setting up the connection-oriented mode. During connection-oriented mode, one BLE device assumes the role of the master, while the other becomes the slave, enabling bidirectional data transfers to take place.



A Journey Through the History of BLE (Bluetooth Low Energy)



Embark on this fascinating journey through the history of Bluetooth Low Energy, or BLE, and uncover the evolution of this revolutionary wireless technology.

What is BLE, and What Does It Stand For?

    BLE stands for Bluetooth Low Energy, often marketed as Bluetooth Smart. It's a wireless communication technology that was developed for short-range communication. While it shares some similarities with Wi-Fi, BLE is specifically designed to prioritize battery life over high-speed data transfer.

Today, most smartphones and tablets are BLE-compatible, making it easy to communicate with various devices, from wireless headphones and fitness trackers to digital signage.

How Does BLE Technology Work?

    BLE operates on a one-way communication principle. Let's take the example of BLE beacons trying to communicate with a nearby smartphone. A Bluetooth beacon device broadcasts data packets at regular intervals. These packets are detected by apps or pre-installed services on nearby smartphones, triggering actions such as sending messages or promoting an app.

To save energy and ensure higher data transfer speeds, the Bluetooth BLE communication framework comprises 40 frequency channels, with 3 primary advertisement channels and 37 secondary data channels. BLE operates in the 2.4 GHz Industrial, Scientific, and Medical (ISM) band, with a range of approximately 10 meters. It employs a frequency-hopping spread spectrum (FHSS) technique to avoid interference from other wireless devices using the same frequency band.

The BLE protocol stack is similar to classic Bluetooth, consisting of the Physical Layer (PHY), Link Layer (LL), Host Controller Interface (HCI), and the Generic Attribute Profile (GATT).

A Glimpse into the History of BLE

    BLE's history is deeply intertwined with the Bluetooth Special Interest Group (SIG). The specifications for BLE were formally announced on May 20, 1998, by the SIG, which was established by major companies like Ericsson, IBM, Intel, Nokia, and Toshiba. Over the years, the SIG has grown to include over 30,000 companies worldwide.

Now, let's dive into the history of BLE, including its various versions and their key features:

Ø  Bluetooth 1.0 and 1.0B



Products were not interoperable.

Anonymity was not possible, limiting certain services.



Ø  Bluetooth 1.1-1.2



Ratified as IEEE Standard 802.15.1–2002.

Fixed many errors found in the v1.0B specifications.

Added non-encrypted channels.

Introduced Received Signal Strength Indicator (RSSI).

Faster connection and discovery.

Adaptive frequency-hopping spread spectrum (AFH) improved resistance to radio frequency interference.

Achieved higher transmission speeds, up to 721 kbit/s.

Introduced Extended Synchronous Connections (eSCO) for better voice quality.

Host Controller Interface (HCI) operation with three-wire UART.



Ø  Bluetooth 2.0 + EDR and 2.1 + EDR



Introduced Enhanced Data Rate (EDR) for faster data transfer.

EDR used a combination of GFSK and phase-shift keying modulation (PSK) to achieve a bit rate of 3 Mbit/s.

Reduced power consumption through a lower duty cycle.

Introduced secure simple pairing (SSP) for improved pairing and security.

Allowed for extended inquiry response (EIR) and reduced power consumption with sniff subrating.



Ø  Bluetooth 3.0 + HS



Adopted by the Bluetooth SIG on April 21, 2009.

Provided theoretical data transfer speeds of up to 24 Mbit/s.

Introduced AMP (Alternative MAC/PHY) for high-speed transport.

Enhanced modes for L2CAP



Ø  Bluetooth 4.0 (Bluetooth Smart), 4.1 and 4.2



Adopted as of June 30, 2010 & Announced on December 4, 2013.

Included Classic Bluetooth, Bluetooth high speed, and Bluetooth Low Energy (BLE) protocols.

BLE was designed for low-power applications and significantly extended battery life.

Introduced new features, including increased co-existence support for LTE and improved data exchange rates.

Focused on Internet of Things (IoT) technology.

Introduced features like Low Energy Secure Connection and enhanced privacy



Ø  Bluetooth 5



Released on December 6, 2016.

Introduced options to double speed or quadruple range.

Enhanced capacity for connectionless services.



Ø  Bluetooth 5.1, 5.2, 5.3 and 5.4



Presented on January 21, 2019 to February 2023.

Introduced features like Angle of Arrival and Angle of Departure for device tracking.

Introduced Enhanced Attribute Protocol, LE Power Control, and LE Isochronous Channels.

Introduced Bluetooth Low Energy Audio (BT LE Audio) for lower battery consumption in audio transmission.

These are the significant milestones in BLE's history, and it's incredible to see how it has evolved and adapted to meet the demands of various applications. In our next blog post, we'll continue exploring BLE's journey, including its impact on the world of wireless communication and the Internet of Things.
